Telecom Aluminium Alloy Die Casting Box CT4 Sandblasting Surface

Product Categories
Shenzhen Johnhalm PDTec.,Ltd
Contact Now

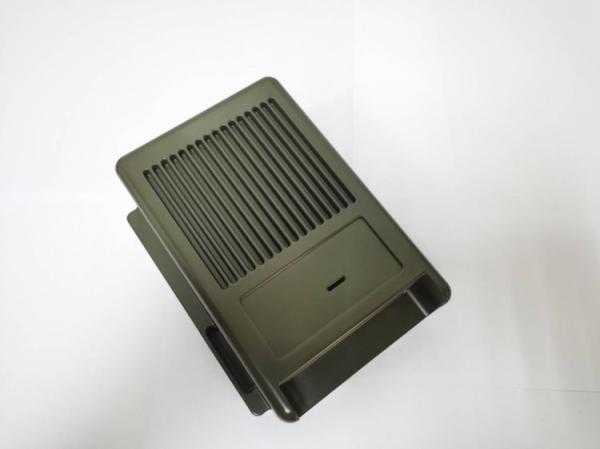

Telecom Aluminium Alloy Die Casting Box CT4 Sandblasting Surface

Brand Name : JHPD

Model Number : Xswl

Certification : IATF16949

Place of Origin : CHINA

MOQ : 500PCS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 pcs per month

Delivery Time : 20-30 days

Packaging Details : PP Bag, Paper Roll, Blister Box, Carton or According to Your Demand

Keyword : Telecom Box

Application : Electronic Accessories

Process : Die casting

Tolerance : +/-0.01mm

Mould Life : 50000-100000 Shots

Quality Control : 100% Inspection

Contact Now

Die casting Telecom Box Die Casting Telecom Holding Boxes Base Transceiver

Company Information

ShenZhen Johnhalm PDTec., Ltd and Shenzhen KaHeng Mould Manufacturer is a global manufacturer of both conventional and multi-slide die cast precision components. We offer solutions for a variety of industriesincluding light of hoticulture and ballast, professional/stage lighting housings, LED light enclosures, motors, communication products, consumer electronics, automotive, healthcare, and more.

Casting Machine

 Die casting machine 88 ton, 125 ton, 200 ton, 280 ton, 400ton, 500 ton, 800 ton,1000 ton
Material Aluminum alloy ADC10 ADC12 ADC14 A360 A380, zinc alloy......
Casting Mold Design, Fabrication, Test, Modification & Maintenance
Surface Treatment Sandblasting, Polishing, Plating, Powder Coating, Anodisation etc
Accuracy Class CT4~CT11
Surface Roughness Ra1.6~Ra6.3
Machining Equipment 3/4/5 Axis CNC machining center, CNC engraving machine, CNC milling machine
CNC turning machine, high precision grinding machine, WEDM etc

Aluminum Raw Material Datesheet

ALUMINUM DIE CASTING ALLOYS
(Composition, Properties & Characteristics)
ALLOY COMPOSITION
(% max or range)		 A360 (ADC3) A380 (ADC10) A383 (ADC12) A384 A390 (ADC14) A413
(A13)		 A518
Silicon 9~10 7.5.-9.5 9.5-11.5 10.5-12 16-18 11~13 0.35
Iron 1.3 1.3 1.3 1.3 1.3 1.3 1.8
Copper 0.6 3/4 2/3 3.4.5 4/5 1 0.25
Manganese 0.35 0.5 0.5 0.5 0.5 0.35 0.35
Magnesium 0.40-0.60 0.1 0.1 0.1 0.45-
0.65		 0.1 7.5-8.5
Nickel 0.5 0.5 0.3 0.5 0.1 0.5 0.15
Zinc 0.5 3 3 3 1.5 0.5 0.15
Tin 0.15 0.35 0.15 0.35 0.2 0.15 0.15
Titanium - - - - 0.2 - -
Total others 0.25 0.5 0.5 0.5 0.2 0.25 0.25
Aluminum Bal. Bal. Bal. Bal. Bal. Bal. Bal.
PROPERTIES A360 A380 A383 A384 A390 A413
(A13)		 A518
Ultimate Tensile
(ksi)		 46 47 45 48 40.5 42 45
Tensile Yield Strength (ksi) 24 23 22 24 35 19 28
Elongation (% in 2" G.L.) 3.5 3.5 3.5 1-2.5 3.5 5
Hardness (BHN) 75 80 75-80 85 85 120 80
Shear Strength (ksi) 26 27 25 29 - 29 29
Charpy impact strength (ft.lb.—unnotched) 4.2 3.5 - - - 2 7
Fatigue strength (ksi) (limit@ 500 million cycles) 18 20 19 20 - 20 20
Density (lb./in.3) 0.095 0.098 0.097 0.098 0.099 0.096 0.093
Melting range (˚F) (Approx.) 1035-
1105		 1000-
1105		 960-
1100		 960-
1100		 945-
1200		 1065-
1080		 995-
1150
Specific heat (Btu/lb. ˚F) 0.23 0.23 - - - - -
Coefficient of thermal
expansion
(in./in./ ˚F)		 11.8 11.7 11.5 11.3 11.7 10.3 13.4
Thermal conductivity (Btu/fthr. ˚F) 65.3 55.6 55.6 56 78.6 67.7 55.6
Electrical conductivity (%IACS) 29 23 23 23 25 31 24
Modulus of elasticity (106 psi) 10.3 10.3 10.3 10.3 11.9 10.3 -
CHARACTERISTICS
1 – most desirable
5 – least desirable		 A360 A380 A383 A384 A390 A413
(A13)		 A518
Resistance to Hot Cracking 2 2 1 2 4 1 5
Pressure Tightness 1 2 2 2 4 1 5
Polishing 3 3 3 3 5 4 1
Fluidity 2 2 1 1 1 1 5
Corrosion Resistance 2 4 3 4 3 2 1
Machine-ability 2 2 2 3 5 4 1
Strength at Elev. Temp. 3 2 2 2 3 2 4
Anti-Die Soldering Tend. 3 1 2 2 2 2 5
Electroplating 1 1 1 2 3 3 5
Anodizing Appearance 4 3 3 4 5 5 1

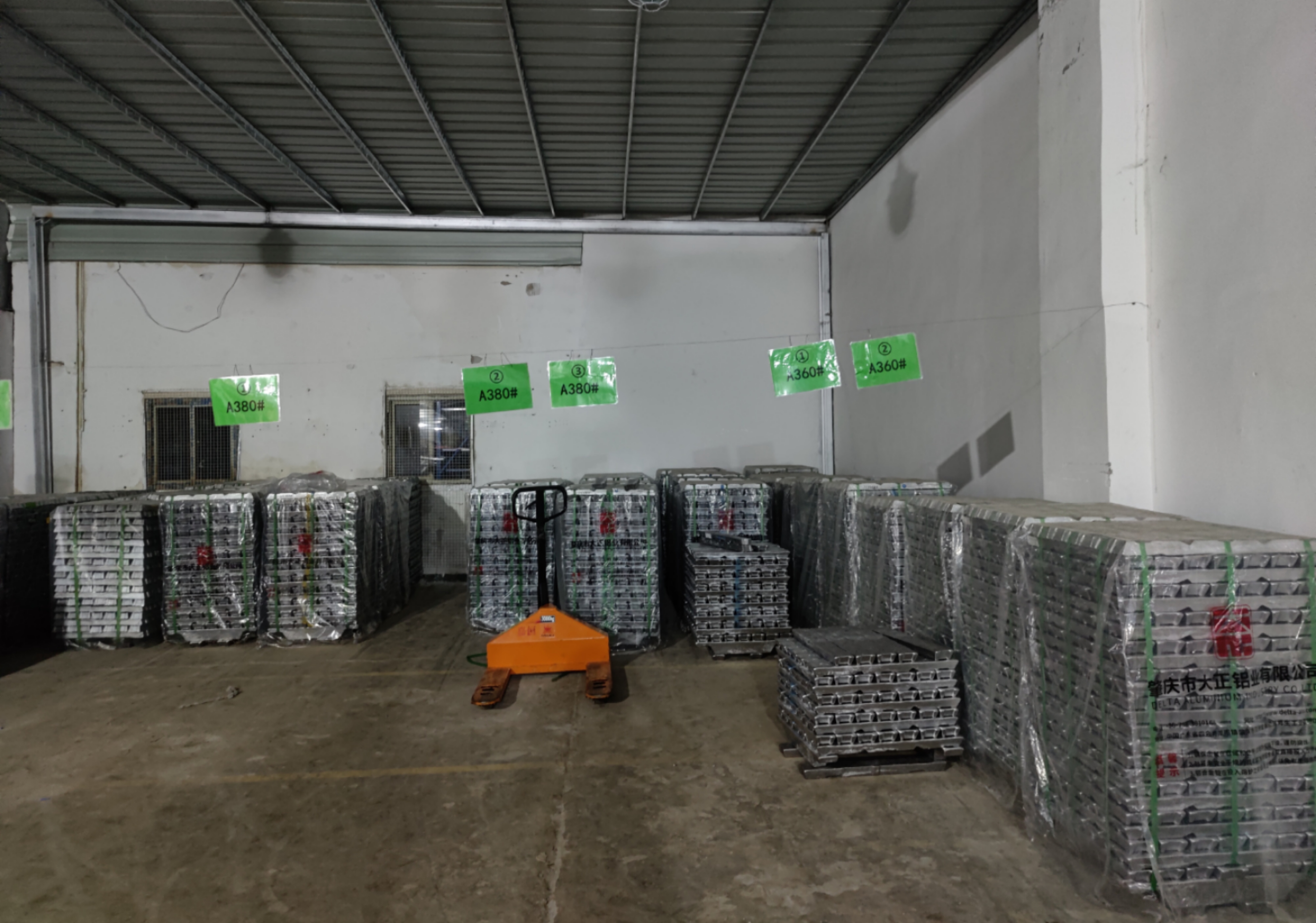

Raw Material

Telecom Aluminium Alloy Die Casting Box CT4 Sandblasting Surface
